Injap bola terapung pneumatik tiga keping (dengan bracket‌)

Waits Valve Three Pneumatic Floating Ball Valve (dengan kurungan) adalah ISO dan API yang disahkan dan telah menjalani ujian tekanan/meterai yang ketat. Penggerak pneumatik menggunakan perumahan aluminium anodized dan luaran yang diekstrusi dalaman dengan topi akhir bersalut epoksi. Bahan dan reka bentuk sedemikian sangat tahan kakisan. Saya percaya bahawa apabila anda menghadapi injap mudah lain, anda akan menyesal kerana tidak memilih injap Waits Valve!

Baca Lagi Hantar Pertanyaan

Injap bola terapung tuil gangsa

Waits Valve Tahap Gangsa Tinggi Injap Bola Terapung digunakan secara meluas dalam bangunan bekalan air dan sistem saliran, sistem penyejukan industri, pengairan pertanian dan peralatan kapal. Memilih Waits Valve bermakna memilih pengalaman perkhidmatan "sifar menunggu, sifar risiko". Waits Valve menukarkan setiap detail perkhidmatan ke dalam penjimatan kos dan peningkatan kecekapan untuk pelanggan.

Baca Lagi Hantar Pertanyaan

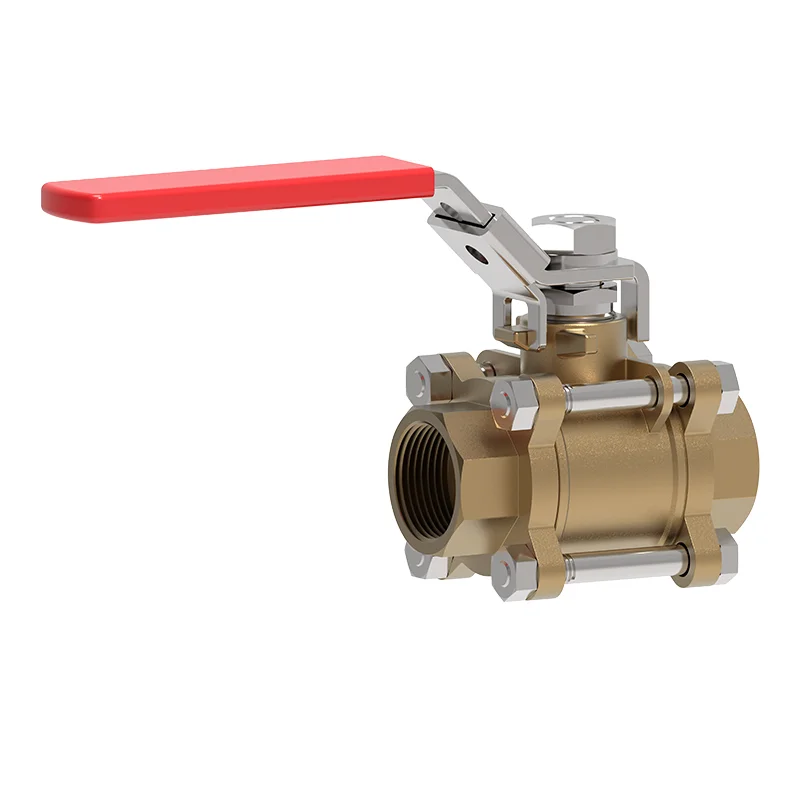

Injap bola NPT tiga keping gangsa

The Waits Bronze Three Npt Ball Valve, Precision Dibuang dari Aluminium Bronze, menentang kakisan dan tekanan. Reka bentuk tiga kepingnya membolehkan penyelenggaraan mudah, sifar-leakage, dan kawalan aliran yang tepat. Benang NPT dan pelbagai tindakan sesuai dengan sistem petrokimia, marin, dan air.

Baca Lagi Hantar Pertanyaan

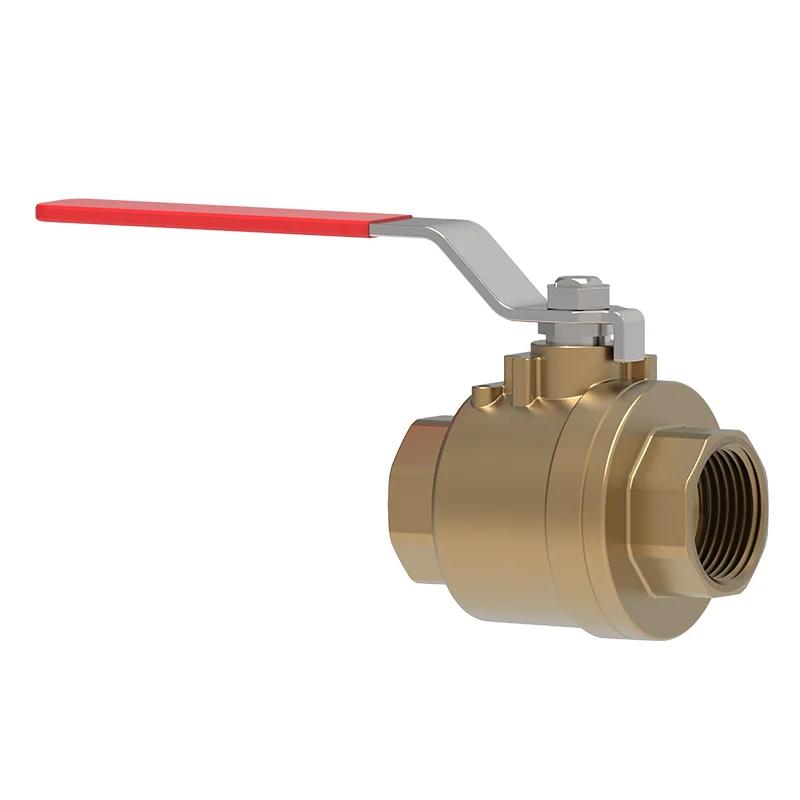

Injap bola NPT dua keping gangsa

The Waits Bronze Dua Piece NPT Ball Valve, dengan badan gangsa aluminium yang tahan lama untuk rintangan kakisan, mempunyai reka bentuk dua keping dan bola ketepatan untuk pengedap sifar. Benang NPT membolehkan pemasangan/penggerak mudah, memastikan kawalan bendalir yang boleh dipercayai dalam persekitaran yang pelbagai.

Baca Lagi Hantar Pertanyaan

Injap Bebola Dikimpal Sepenuhnya

Waits ialah pengeluar injap yang besar, dan injap bola yang dikimpal sepenuhnya adalah salah satu produk yang boleh kami sediakan. Memandangkan kerusi injap produk ini terdiri daripada cincin pengedap Teflon berkarbonat dan spring cakera, ia mempunyai kebolehsesuaian yang kuat terhadap perubahan tekanan dan suhu dan tidak akan bocor dalam julat tekanan dan suhu yang ditandakan. Dalam projek penghantaran gas di Timur Tengah dan projek pemanasan di Eropah Utara, injap bebola yang dikimpal sepenuhnya digunakan secara meluas.

Baca Lagi Hantar Pertanyaan

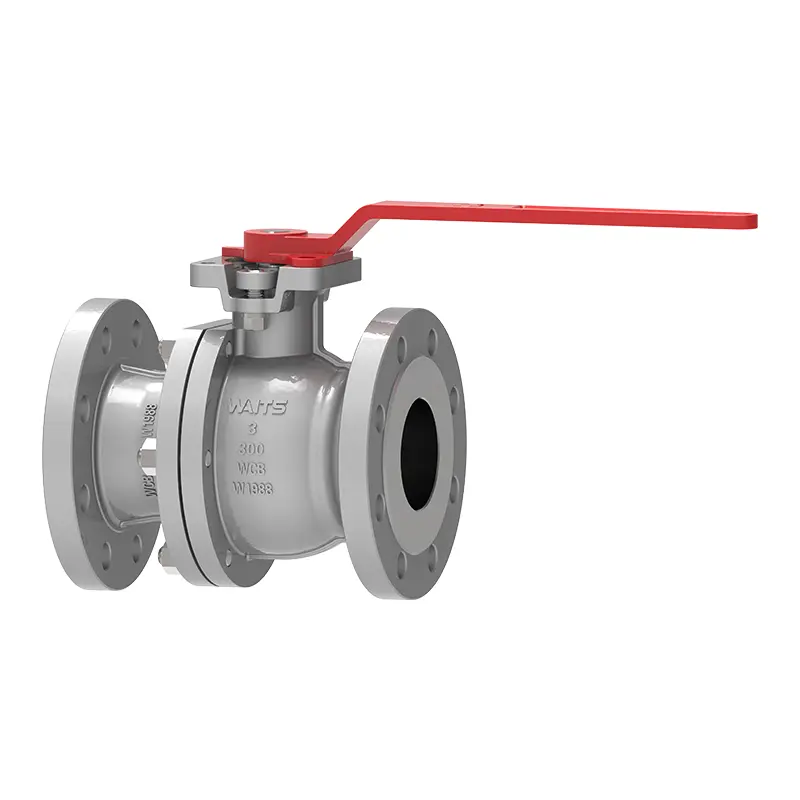

Injap bola terapung bebibir

Sebagai pembekal injap bola terapung berkualiti tinggi, Waits mempunyai pengalaman industri yang kaya dan dapat menyediakan pelanggan dengan perkhidmatan tersuai yang berbeza untuk memenuhi keperluan peribadi industri dan aplikasi yang berbeza. Kami boleh menggunakan piawaian seperti API602/ ISO17292/ BS5351, dan lain -lain, dan mengeluarkan dan menerima mereka mengikut piawaian sepanjang proses untuk memastikan kualiti produk.

Baca Lagi Hantar Pertanyaan

<1 2 3 4 >

Ball valve is a efficient valve that control the fluids flow and blockage by rotate the ball.Valves has core advantages such as simple structure, good sealing performance, and convenient operation, and the valve is widely used in industries such as petroleum, chemical engineering, power and water treatment. The working principle of ball valve made in China is to achieve the opening and cutting off of the fluid by rotating the ball with a through-hole 90° under the pressure of the medium. The characteristics of WAITS ball valve is low flow resistance, fast opening and closing, and long service life.

According to the different structural designs, ball valves are mainly divided into the following types:
Floating ball valve : The ball is pressed against the valve seat seal under the pressure of the medium, suitable for small-diameter and medium-pressure working conditions, and the durable ball valve is economical and practical.
Fixed Ball Valve : The ball of WAITS quality ball valve is supported by the upper and lower fixed shafts, suit the high pressure and sealing stable, The classy ball valve is the first choice for long-distance pipelines of petroleum and natural gas. V-ball valve : The ball has a V-Port, which can precisely regulate the flow rate, and is special suitable for high-viscosity media such as slurries and powders.
Double ball valve: The double-ball design in WAITS advanced ball valve make the double sealing safer, and is suitable for high-risk media such as liquefied natural gas (LNG).
Side-entry ball valve: The body can be disassembled from the side, facilitating maintenance, and is suitable for installation environments with limited space.
Top Entry ball valve : The top is detachable, making maintenance convenient, and does not require disassembling the entire valve, suitable for buried or elevated pipelines.

How to choose the ball valve types

Structural type	Advantages	Limitations	Typical applications
Floating ball valve	Low cost, lightweight	High pressure and large torque	Small-diameter water/gas pipelines
Fixed ball valve	High pressure stability, Bidirectional sealing	Complex structure, high price	Long-distance pipelines of petroleum and natural gam
Three-piece ball valve	Maintenance convenient	Large volume, high weight	Corrosive media in chemical industry
V-port ball valve	Precise flow regulation	Not resistant to particle wear	Flow control of slurries and powders
Three-way T-port ball valve	Multi-directional control	High flow resistance	Reaction vessel mixing system

Core Product Advantages
1. Flange Floating Ball Valve
It ensures excellent sealing performance with a precisely machined floating ball structure. The body is available in multiple grades to meet the requirements of different media. The working pressure can reach PN40, and the applicable temperature range is from -29°C to 200°C. Typical applications: urban water supply and drainage, food processing, and pharmaceutical industries.
2. Fixed Ball Valve
Full bore design of Newest Ball Valve with a flow resistance coefficient as low as 0.05. Double piston effect valve seat ensures reliable sealing under high-pressure conditions. Complies with API 6D standards, with the highest pressure rating up to ASME 2500#. Typical applications: long-distance pipelines, LNG receiving stations, and refining and chemical plants.
3. Two-Piece Welded Ball Valve
Full welded body structure of Advanced Ball Valve for zero leakage. Buried design with an extended valve stem for underground operation. Certified by ISO 15848 micro-leakage. Typical applications: urban gas pipelines and chemical parks.

Differentiated Service System
1. Agile Response Mechanism
Professional customer service team provides 7×24-hour technical consultation.
Standard product quotation response time < 4 hours.
Emergency order processing cycle can be shortened to 72 hours.
2. Full Lifecycle Service
Pre-sale stage: Provide fluid flow analysis and valve selection consultation.
Sale stage: Offer installation guidance and on-site commissioning services.
After-sale stage: Provide maintenance and repair services, as well as spare parts supply.
3. Customized Solutions
Special materials (such as Inconel, Hastelloy) valves can be provided
Customization for non-standard sizes and special connection methods is supported
Quality Assurance System
Obtained multiple certifications including API 6D, CE, ISO 9001, etc.
100% factory pressure testing, using fully automatic pressure testing equipment
Traceability system for key components to ensure quality consistency

WAITS Valves adhere to the business philosophy of "Customer-Centricity", through continuous technological innovation and service optimization, creating maximum value for customers. We look forward to developing together with global partners and providing safer and more efficient solutions in the field of industrial fluid control.
If you need to obtain more product information or technical support, please feel free to contact our professional team at any time.
